Qhob Paver Moulds
2. Hardness rau khau: HRC59-62
3.Carburized txheej thickness: 1.3-1.5mm
4.Unilateral clearance ntawm presser ko taw thiab pwm kab noj hniav: 0.2 hli Tsawg tshaj los yog sib npaug rau Unilateral clearance Tsawg tshaj los yog sib npaug rau 0.4 hli
5.Flatness ntawm tag nrho lub rooj tsavxwm: Tsawg dua los yog sib npaug rau 0.5mm
6.Deviation nyob rau hauv qhov ntev thiab dav qhov ntev ntawm ib kab noj hniav qauv: -0.3 rau +0.3mm
7.Qhov sib txawv ntawm qhov siab (qhov tob) ntawm cov qauv qis qis yog ± 0.5mm
Xa kev nug
Product Details ofQhob Paver Moulds
qhob paver pwm
Sib piv cov cuab yeej zoo rau koj qhov ntim ntau lawm thiab hom paver
Pob zeb paver pwm tsis yog ib yam khoom lag luam. Lawv nthuav dav ntau yam ntawm cov qauv tsim, cov ntaub ntawv, thiab cov qib precision, txhua qhov haum rau ntau qhov sib txawv thiab cov qauv paver. Kev xaiv cov pwm kom raug suav nrog kev sib piv cov cuab yeej rau lub tshuab, kev sib xyaw ua ke, thiab lub hom phiaj tso tawm txhua hnub.
UNIK tau tsim paver pwm nyob rau hauv Quanzhou, Fujian txij li thaum 2010. Lub tuam txhab muaj tshaj 15 xyoo ntawm export kev thiab khoom siv pwm rau pob zeb khoom manufacturers nyob rau hauv 28 lub teb chaws. Nplooj ntawv no muab cov txheej txheem txheej txheem ntawm paver pwm hom, qib khoom siv, thiab cov txheej txheem thev naus laus zis uas cuam tshuam rau kev ua haujlwm.
Classification los ntawm Paver Style
Thawj qhov kev txiav txim siab hauv kev xaiv pwm yog cov duab paver thiab kev sib tshuam. Daim ntawv thov sib txawv yuav tsum tau sib txawv ntug geometry.
Rectangular paver pwm- Tsim cov qauv square lossis duab plaub pavers nrog cov npoo ncaj. Cov no yog hom ntau tshaj plaws rau cov tsheb hauv tsev, kev taug kev, thiab paving dav dav. Kab noj hniav qhov ntau thiab tsawg ntawm 200 × 100mm txog 400 × 230mm.
Interlocking paver pwm- Ua pavers nrog nkhaus lossis angled npoo uas kaw ua ke. Kev sib cuam tshuam tsim faib cov khoom thauj thoob plaws ntau lub pavers, tiv thaiv kev hloov tsheb hauv tsheb. Qhov ntau thiab tsawg muaj xws li 252 × 252mm, 218 × 135mm, thiab 173 × 150mm.
Wave- hom paver pwm- Tsim pavers nrog dej hiav txwv -nthwv dej nto qauv. Cov no tau nce ntxiv rau kev txhim kho marina, cov chaw ntug dej hiav txwv, thiab cov chaw zoo nkauj rau pej xeem. UNIK xa nthwv dej- hom paver ntau lawm kab rau Colombo waterfront project hauv 2025.
Hexagonal paver pwm- Ua rau - sab pavers uas tsim cov qauv honeycomb. Siv rau vaj txoj hauv kev, patios, thiab thaj chaw tshwj xeeb uas pom qhov cuam tshuam qhov teeb meem. Txheem hexagon qhov ntau thiab tsawg ntawm 140 × 140mm txog 200 × 200mm.
Nyom paver pwm- Ua pavers nrog qhib hlwb uas tso cai rau cov nyom kom loj tuaj. Siv rau chaw nres tsheb, kab hluav taws, thiab kev tswj kev yaig. Cov qauv ntawm tes muaj xws li pob zeb diamond, square, thiab puag ncig qhib. Qhov ntau thiab tsawg muaj xws li 333 × 166mm, 240 × 210mm, thiab 190 × 190mm.
Pob zeb-zoo li paver pwm- Ua pavers nrog cov ntaub ntawv zoo nkauj uas ua rau cov pob zeb ntuj, cobblestone, lossis ntoo grain. Cov no xav tau cov qauv saum npoo siab dua ntawm cov kab noj hniav pwm kom hloov cov ntsiab lus zoo.
Classification los ntawm Material Qib
Qhob paver pwm yog tsim los ntawm peb cov khoom siv qib, txhua tus nqi sib txawv thiab cov yam ntxwv ntawm lub neej.
Txheem steel pwm (42CrMo)- Ua los ntawm chromium -molybdenum alloy steel. Deg hardness ncav cuag HRC55-58 tom qab kev kho cua sov. Kev cia siab lifespan yog 50,000 txog 70,000 cycles. Haum rau nruab nrab-ntim ntau lawm thiab txheem pob zeb sib xyaw.
Hwm hlau pwm (Cr12MoV lossis 9CrSi)- Ua los ntawm siab -carbon, siab -chromium cuab yeej steel. Deg hardness ncav cuag HRC59-62 tom qab carburizing kho cua sov. Kev cia siab lifespan yog 80,000 txog 100,000 cycles. Haum rau high-volume ntau lawm thiab abrasive qhob mixes.
Yas pwm (PP)- Ua los ntawm polypropylene rau me me - nplai lossis DIY ntau lawm. Kev cia siab lifespan yog 500 txog 1,500 cycles. Haum rau qhov project-raws li kev ua haujlwm, cov kws tsim khoom tsim khoom, thiab nkag mus- theem ua haujlwm. Muaj los ntawm kev ua lag luam nrog yam tsawg kawg nkaus ntawm 100-500 daim ntawm US $ 6-28 ib chav.
UNIK tsim cov qauv thiab hwm steel paver pwm. Cov pwm yas tsis yog tsim los ntawm UNIK tab sis tau hais ntawm no rau cov ntsiab lus ntawm kev lag luam.
Tom qab -Kev Pabcuam Muag
UNIK muab plaub qhov tseem ceeb tom qab- kev muag khoom rau txhua qhov paver pwm xa khoom.
12-Lub Hlis Warranty
UNIK muab plaub qhov tseem ceeb tom qab- kev muag khoom rau txhua qhov paver pwm xa khoom.
Khoom Muag Khoom
Hloov lub tes tsho, core pins, thiab cov ntawv xovxwm yog muaj los ntawm cov khoom muag. Standard qhov chaw nkoj hauv 48 teev. Kev cai qhov chaw xav tau 10-15 hnub rau kev tsim khoom.
Re-Kev Pabcuam hardening
Cov pwm hnav tuaj yeem rov ua dua -tsim kom rov qab qhov qub kab noj hniav ntawm kwv yees li 25% ntawm tus nqi pwm tshiab, ncua kev pabcuam lub neej los ntawm 40-60%. Kev sib xyaw ua ke rov ua kom tawv tawv rov ua kom tawv tawv rau HRC59-62.
Kev them nyiaj yug tej thaj chaw deb
UNIK engineers teb rau kev nug hauv 24 teev. Kev daws teeb meem hu xov tooj yog muaj rau kev teeb tsa, kev ua haujlwm, thiab cov teeb meem tsim khoom. Kev teeb duab kos duab thiab cov txheej txheem kev saib xyuas yog muab nrog txhua lub pwm.
Peb lub Hoobkas

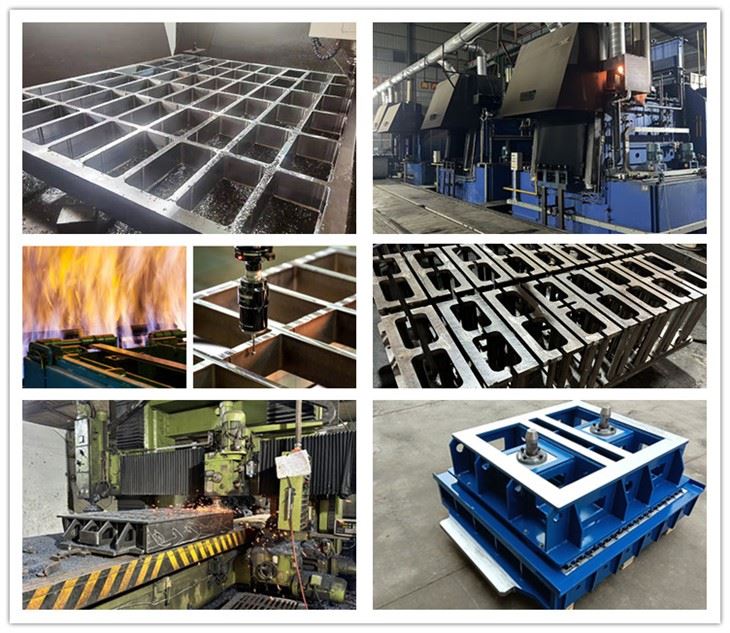

Kev tsim khoom
Kev xa khoom
rhiav
Txheej txheem
UNIK qhob paver pwm yog tsim los ntawm 42CrMo (tus qauv) los yog Cr12MoV / 9CrSi (hwm) steel, nrog carburizing tshav kub kev kho mob ua tiav nto hardness ntawm HRC59-62 thiab dimensional kam rau ua ntawm ± 0.3 hli. Cov pwm yog sib xws nrog ntau tshaj 20 thoob ntiaj teb tshuab hom xws li HESS, MASA, ZENITH, BESSER, TIGER, Qunfeng, thiab Quangong. Kev cia siab lifespan li ntawm 80,000 mus rau 100,000 cycles nyob rau hauv cov xwm txheej ntau lawm.
Txhua pwm yog rov qab los ntawm plaub tom qab- cov kev pabcuam muag: 12-hli warranty npog cov ntaub ntawv thiab kev ua haujlwm, cov khoom seem muab nrog cov txheej txheem xa khoom tsis pub dhau 48 teev, rov-cov kev pabcuam sharpening thiab re-hardening ntawm kwv yees li 25% ntawm cov pwm tshiab tus nqi txuas ntxiv lub neej los ntawm 40-60%, thiab tej thaj chaw deb hu xovtooj nrog peb thiab 24- kev pab cuam hoo hoo. UNIK tau tsim cov tshuab cib thiab pwm txij li xyoo 2010, nrog ntau tshaj 15 xyoo ntawm kev xa tawm ua haujlwm rau 28 lub teb chaws thoob ntiaj teb.
Cim npe nrov: Tuam Tshoj qhob paver moulds manufacturers, lwm tus neeg, Hoobkas
